Description
Technical Specifications
| Code | HP / KW | PSI / BAR | Free Air Delivery LPM / CFM |
Dimensions (LxWxHmm) | Weight | Amps Required | Tank Capacity (L) |
|---|---|---|---|---|---|---|---|

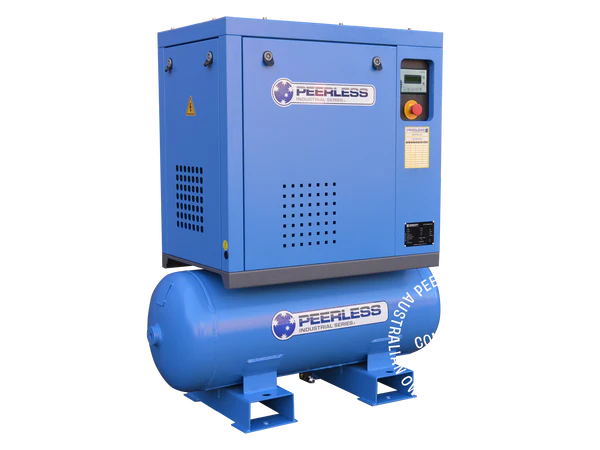

| HQD5.5VSHP | 5.5HP / 4KW | 116PSI / 8 Bar 10Bar optional |
500 / 24.75 | 1100x530x1230 | 195kg | 15A | 110L |
Technical Data
| Cooling method |
Discharge temp (°C) |
Driving type | dBa (+/-2) | Outlet thread |
Electricity | Amps draw (Full load) |
|---|---|---|---|---|---|---|
| Air cooled | Ambient temp +15°C |
Direct driven | 65 | 1/2″BSP | 415V | 8-9A |
